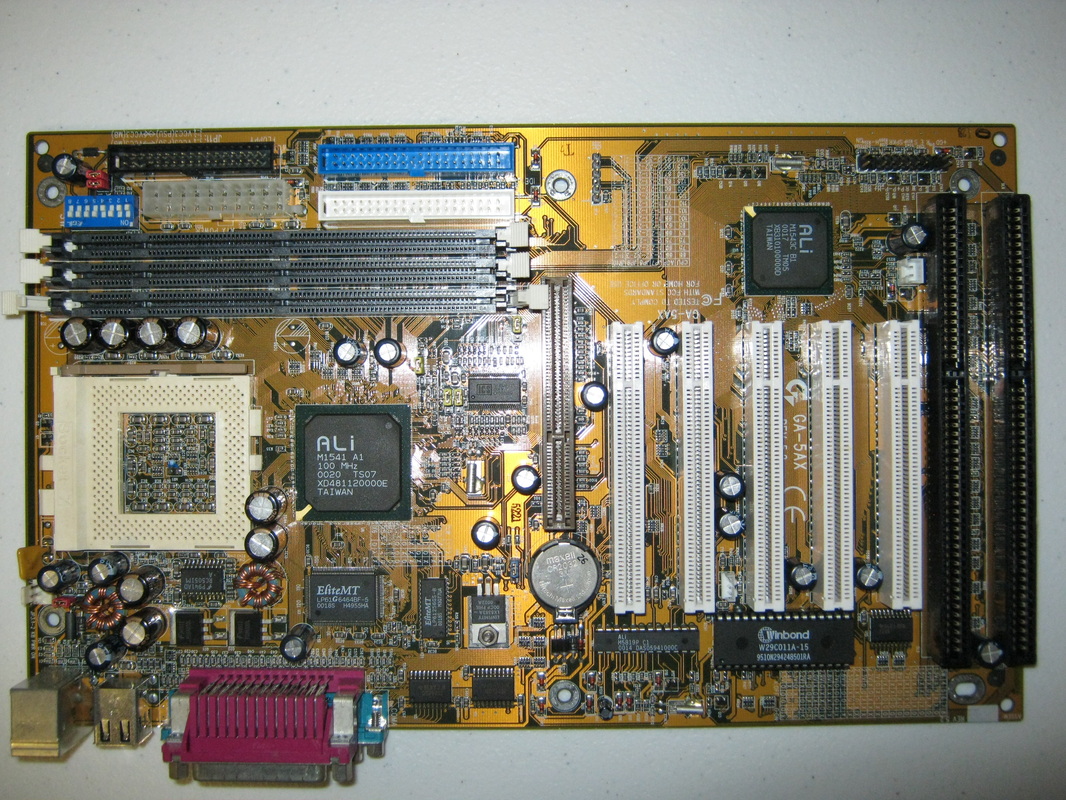

Gigabyte GA-5AX REV 5.2

CPU
Socket 7 for Intel® MMX™, AMD K6® -2, K6® -3, IBM® /Cyrix® , IDT™ processors
Supports CPU multiplier 1.5/2.0……/6.0 for future processors
66/75*/83*/95/100/105*/110*/115*/120*/125*/130*/135*/140* MHz FSB
CPU voltage 1.3V~3.5V

Chipset
ALi Aladdin V (M1541 & M1543C) AGPset

Memory
8MB to 768MB SDRAM size
3 x 3.3V DIMM sockets
Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM module
Supports ECC Type DIMM module (72 bits)

Expansion Slots
1 x AGP Slot Supports 66/133 MHz speed
5 x PCI slots supports 33MHz & PCI 2.2 compliant
2 x ISA slots
I/O Controller
2 x Ultra DMA 33/66 Bus Master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
2 x USB ports on board

Power
ATX power connector
Power-on by K/B, LAN, RTC, Modem & Switch
Power-off by K/B, Windows 98 Shut down & Switch
Stop CPU fan when entering suspend mode
3 level ACPI LED support

Form Factor
ATX, 4 layer PCB (30.7*18.4 cm)

BIOS
1Mbit flash RAM
AWARD BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable

Other Features
Includes Wake-On-LAN header (WOL)
Poly fuse for keyboard & USB overcurrent protection

Source: Gigabyte GA-5AX REV 5.2
